The DRV7 is available with a Nitrile rubber diaphragm (suffix 'N') for oil applications. A Nitrile rubber soft seated version (suffix 'G', limited to 90°C) is also available for applications that require tight shut-off. It is recommended that for these applications a maximum pressure turndown ratio of 10:1 is observed.
Product detail
| Product code | Reducing valves DRV7- Spirax Sarco |
| Applications | Steam Pressure Reducing Valve regulates the steam pressure downstream from the valve to a pre-adjusted set point value. |
DRV7, Direct acting - Large capacity
The downstream steam pressure signal moves the diaphragm against an adjustable spring. The valve movement is proportional to sensed pressure, but the greater the flow, the larger the offset.
Features & Benefits
- Extremely robust
- Easy to adjust
- Easy to maintain
- Can also be used as a surplussing valve

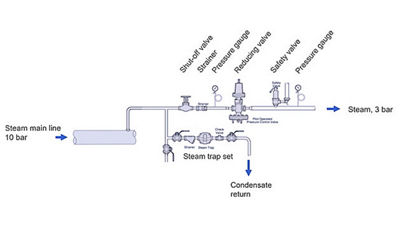

Steam Reducing Station
Many industrial plants produce high-pressure steam for process work. In many of these plants, there is excess steam capacity available that can be utilized for other purposes, such as space heating, water heating, etc. Process steam is often generated at a higher pressure than can be used for the other purposes. Whatever the needs for lower pressure steam, a pressure reducing station will be required.
A pressure reducing station is more than just a reducing valve fed off a steam main. A properly designed and installed pressure reducing station takes into consideration velocity, good piping practices, and safety.
Technical specifications
| Product code | Reducing valves DRV7- Spirax Sarco |
| Applications | Steam Pressure Reducing Valve regulates the steam pressure downstream from the valve to a pre-adjusted set point value. |
DRV7, Direct acting - Large capacity
The DRV7 is an SG iron direct acting bellows sealed pressure reducing valve. The standard version has an EPDM diaphragm and is suitable for steam, water and air applications. The DRV7 is available with a Nitrile rubber diaphragm (suffix 'N') for oil applications. A Nitrile rubber soft seated version (suffix 'G', limited to 90°C) is also available for applications that require tight shut-off. It is recommended that for these applications a maximum pressure turndown ratio of 10:1 is observed.

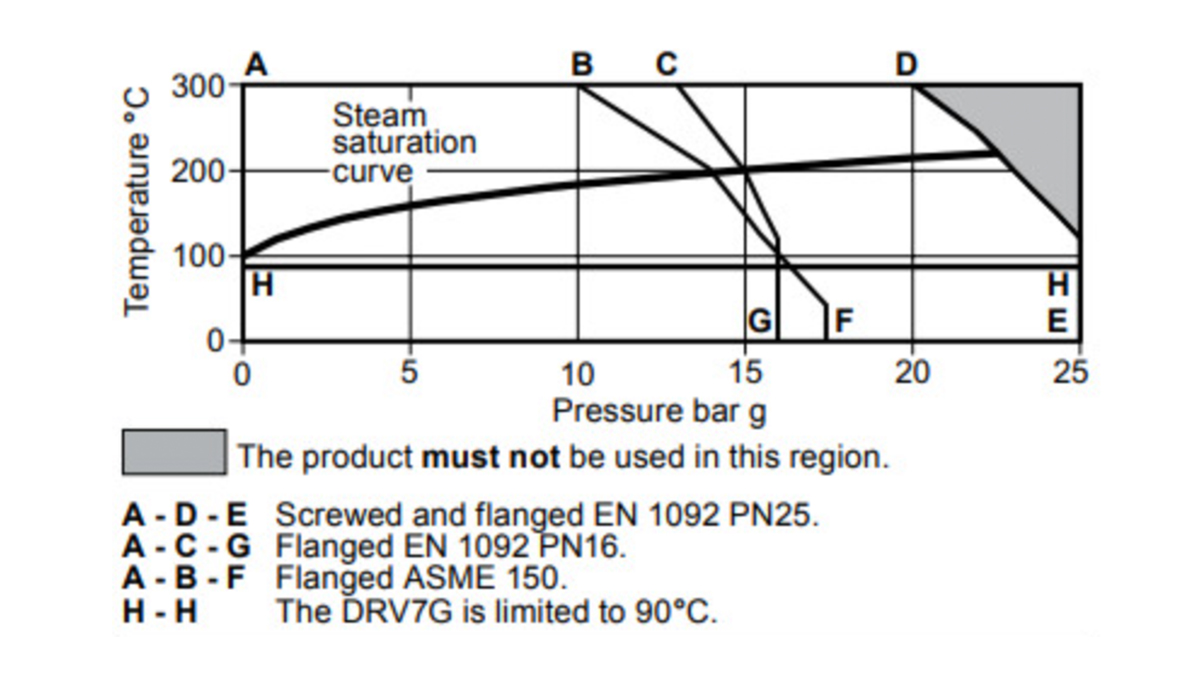

Connection: Flange EN 1092
Material body: SG iron/GGG 40.3
Max temp: 300ºC
Downstream pressure ranges:
| Range | Valve type | Actuator type | Spring colour | Pressure range (bar) | PN Rating |
| 1 | DRV7(G)B1(N) | 1 or 1N | Yellow | *0.1-0.6 | 2.5 |
| 2 | DRV7(G)B2(N) | 2 or 2N | Yellow | **0.2-1.2 | 2.5 |
| 3 | DRV7(G)B3(N) | 3 or 3N | Blue | 0.8-2.5 | 6.0 |
| 4 | DRV7(G)B4(N) | 4 or 4N | Blue | 2.0-5.0 | 16.0 |
| 5 | DRV7(G)B5(N) | 5 or 5N | Blue | 4.5-10.0 | 25.0 |
| 6 | DRV7(G)B6(N) | 5 or 5N | Red | 8.0-20.0 | 25.0 |
* DN32 to DN50 Range 0.15 - 0.6, DN65 to DN100 Range 0.3 - 0.6
** DN65 to DN100 Range 0.4 - 1.2
Sizes and pipe connections
- ½", ¾" 1", 1¼", 1½", and 2"
- Screwed BSP (BS 21 parallel), NPT also available on request. DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80 and DN100.
- Standard flanges: EN 1092 PN16 and PN25
- Flanges available on request: ASME 150 and JIS
| KVS values | |||||||||
| Size DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| KVS | 3.4 | 6.5 | 11.4 | 16.4 | 24.0 | 40.0 | 58.0 | 92.0 | 145.0 |
| Note: The KVS values shown above are full capacities and should be used for safety valve sizing purposes where they are required. | |||||||||
