In keeping with its comprehensive approach to plant components, Tetra Pak supplies an extensive range of measuring instruments. This is a specialist area that you can discuss in depth with us to ensure that we satisfy your process monitoring needs. Selected components from leading manufacturers
Product detail
| Product code | Endress + Hauser: Conductivity |
| Applications | For processes in treatment of industrial water and wastewater |

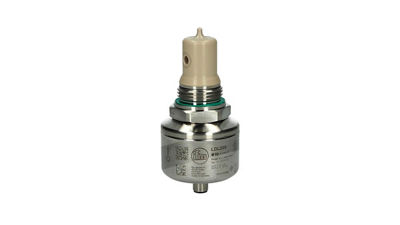

LDL200, IO-Link - IFM
Application: The LDL200 is an, IO-Link plug&play, real-time temperature compensated conductivity sensor for measurement of conductivity in the food industry. To be used for product monitoring in dairies and the beverage industry, CIP system control, phase separation of product/water and product/product mixtures in pipe systems, alkali and acid concentration control, etc. If IO-Link is used then LDL200 can be used for both conductivity and temperature measurement.
Benefits
- Measuring range 100 μS/cm to 1000 mS/cm
- One 4-20 mA analogue output with IO-link
- PEEK sensor – wetted part and SS integral housing
- IP69K Protection – M12 Cable Connection
- Measuring Accuracy 2 % or MW ± 25 μS/cm
- IO-link plug & play commissioning (no display or push button)
- Process temperature -25...100 C ; (< 1 h: 150) suitable for CIP and SIP
- Repetability 1 % MW ± 25 μS/cm
- With integrated temperature measurement sensor

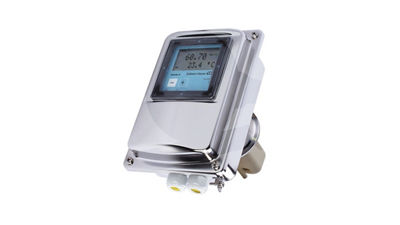

CLD transmitters - CLD134
Application: Transmitter for measurement of conductivity and concentration with inductive sensor for the food industry, e.g. product monitoring in dairies and the beverage industry, CIP system control, phase separation of product/water and product/product mixtures in pipe systems, alkali and acid concentration control, etc.
Benefits
- Transmitter housing made of stainless steel
- Sensor made of highly resistant plastic (PEEK)
- Sterilisable sensor
- High measuring reliability due to extensive self-monitoring functions
- Insensitive to polarisation and soiling
- Sensor versions for all process connections used in hygienic applications
- Large two-line display allows simultaneous display of measured value and temperature
- Standard version extendable by function extension with remote measuring range switching

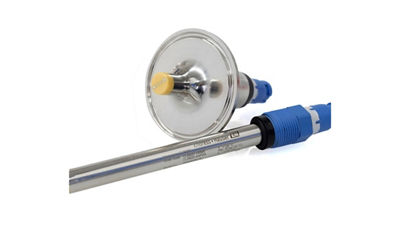

CLS82D
Application: The CLS82D is a conductivity meter used for utilities and in effluent applications including waste water (for example phase separation).
Benefits
- Used together with the Liquiline CM44x transmitter series
- Broad measurement range
- Hygienic design certified by EHEDG and 3-A
- Absolute loop safety thanks to Memosens and unique electrode connection surveillance
- Sterilizable and autoclavable

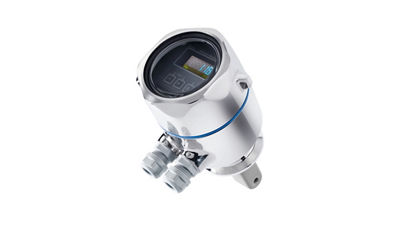

CLD18
Benefits
- EHEDG/3A approval
- Durable
- Temperature compensation response time (t90 < 50 s)
- Cost effective
- Compact
