The weighing range includes load cells and mounting equipment, hygienic and non-hygienic, as well as weighing transmitters and indicators. Earth-quake proof mounting kits can be ordered, but these must be configured for each special weighing case.
Product detail
| Product code | Load cell |
| Applications | Tetra Pak provides weighing equipment for level measurment of tanks or for accurate weighing, for example of mixing tanks. |

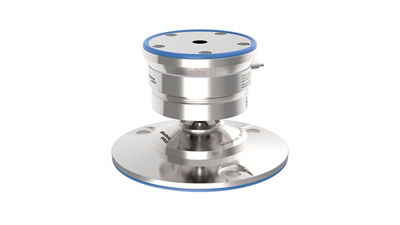

Novego PR6261 - Minebea
Application: Novego PR6261 is side-force-resistance all-in-one solution weighing module for hygienic applications. The weighing module is specially designed for high hygiene demand applications by ensuring simple, error-free installation and maximum resistance to lateral forces.
Benefits
- Reliably absorbs lateral forces. The six strain gauges ensure maximum measurement accuracy and prevent incorrect quantities, even when using mixers.
- The high product quality and corrosion resistance, reduce set-up costs and machine downtime.
- Innovative strain gauges for high measurement accuracy (C3 in accordance with OIML R60)
- Capacity Range: 125 kg – 2 t
- Protection classes IP68 and IP69

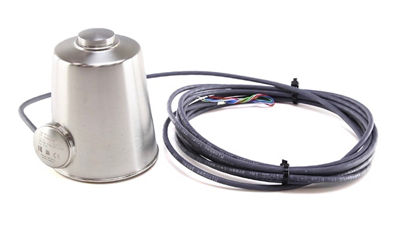

Load cell PR6202 - Sartorius
Application: PR6202 is a hygienic compression load cell, which features absolute accuracy in tank and hopper weighing. It is made from stainless steel in a hygienic design, which makes it the first choice for food plants.
Benefits
- Hygienic and extremly robust, reliable and accurate.
- Unique strain guauge technologie allows extended temperature range (-30 to + 95°C).
- Pre-calibrated output signal.
- Capacity Range: 500kg - 25t.
- Accuracy: C1.
- Ingress Protection: IP68, eqiuvalent to NEMA 6.

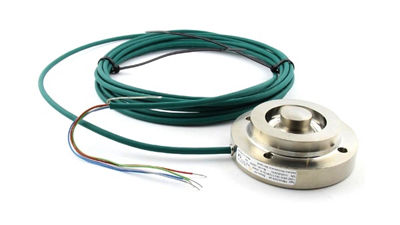

Load cell PR6251- Sartorius
Application: PR6251 PanCake level cell is the ideal solution for all level control requirements using level-by-weight measurements of liquids and solids. It is made from stainless steel.
Benefits
- Only 25/35 mm installation height.
- Also available with 4-20 mA output signal (LA).
- Capacity Range: 500kg - 16t.
- Hermetically welded seal, IP68 equivalent to NEMA 6.
- CENELEC Ex-version available (LE).
