Product detail

Product code Spirax Sarco
Applications They are suitable for use on a wide range of fluids for applications in process lines, hot water systems, steam and condensate systems etc.

LCV-1



The LCV1 is a bronze lift check valve that shall be installed in horizontal pipe to prevent reverse flow.



Standards:
This product fully complies with the requirements of the European Pressure Equipment Directive 97/23/EC.

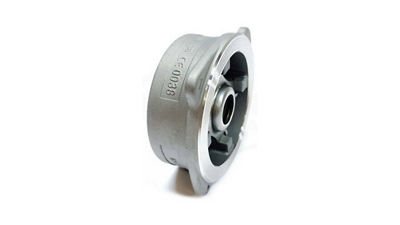

​​​​​​​​​​​​​​​​​Non-return valves- Spirax Sarco

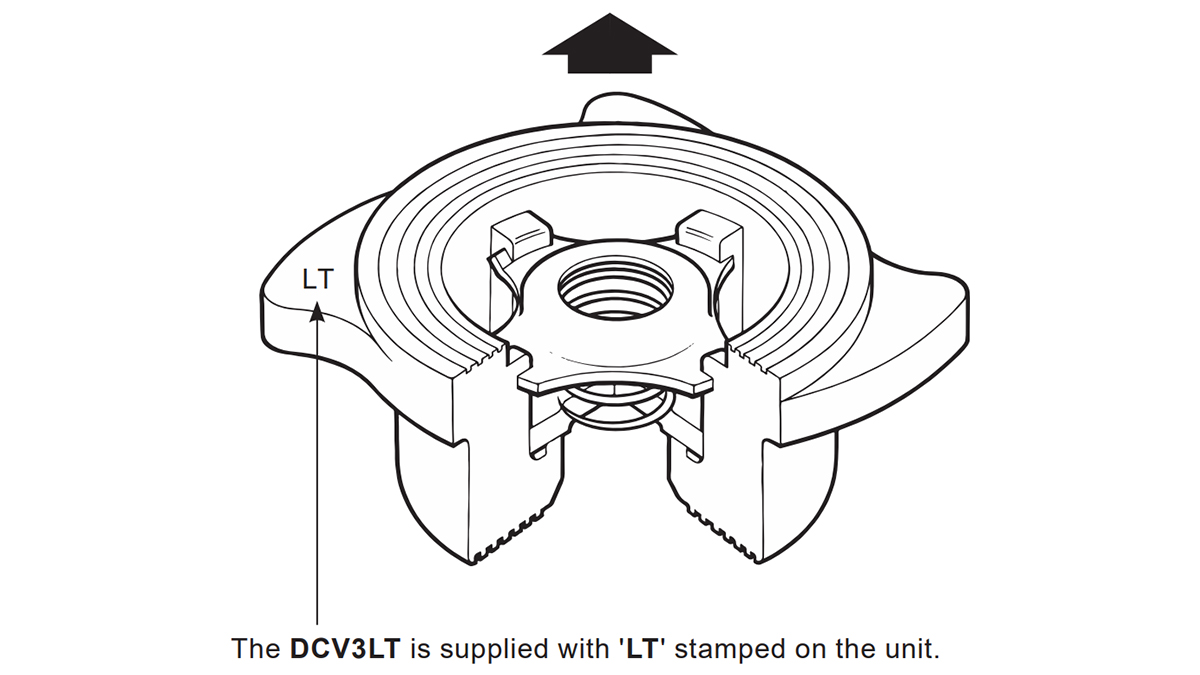

DCV3



Application:

  • The DCV3 is a compact check valve that prevent reverse flow.



Features & Benefits

  • DCV3 fits between flanges
  • Austenitic stainless steel body for aggressive fluids, vapour, acids and alkalines
  • Compact design compared to a sving check valve
​​​​​​​​​​​​​​​​​Non-return valves- Spirax Sarco

Technical specifications

Product code Spirax Sarco
Applications They are suitable for use on a wide range of fluids for applications in process lines, hot water systems, steam and condensate systems etc.

LCV-1



Connection BSP threaded
Material body Bronze
Max allowable pressure 14 bar
Max allowable temperature 260ºC
Certification
This product is available with certification to EN 10204 2.2.
Note: All certification/inspection requirements must be stated at the time of order placement

DCV3



Connection Between flanges
Material body 1.4581
Material disc SS or SS/Viton
Max pressure 40 bar
Max temperature 250ºC
Standards
These products fully comply with the requirements of the Pressure Equipment Directive (PED).
Standard shut‑off
  • Standard valves conform to EN 12266 rate E.
  • Valves conforming to EN 12266 rate D are available on request.
  • Soft seated versions meet EN 12266 rate A, providing a differential pressure exists.
Certification

These products are available with a Typical Test Report. The products are also available with certification to EN 10204 3.1. Note: All certification/inspection requirements must be stated at the time of order placement.
