Product detail
| Product code | Samson |
| Applications | The regulating valves are intended for different media applications such as: · Cold and hot water · Air and neutral gases · Steam |

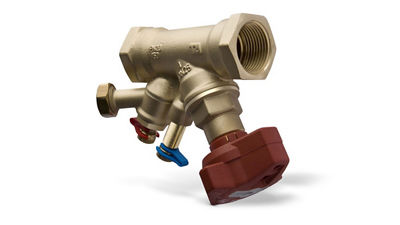

Manual regulating & shut-off valves type TA STA-D/F
Features & Benefits
- DN 10-50 AMETAL (special gunmetal) threaded connection
- DN 65-150 cast iron PN 16 flange connection
- Seat seal /spindle seal : EPDM
- Handweel: Polyamide
- Min temp. -10 C (-20 C DN10-50)
- Max temp. 120 C
- Metering nipples

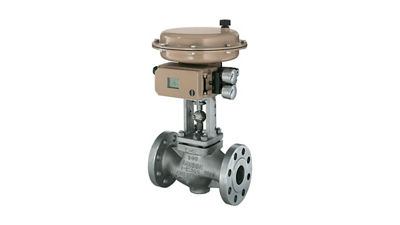

Regulating valves type 3241
Features & Benefits
- Regulating valve 2 ports
- Spring return closed or open available
- Soft seat or hard seat
- Cast iron or Cast steel valve body material.
- Media temperature –10 to 220 degree C
- Pressure class PN16 (cast iron) PN 40 (cast steel)
- DIN or ANSI flanges available

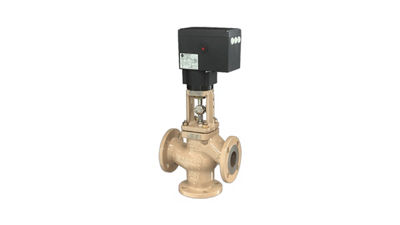

Regulating valves type 3244
Features & Benefits
- Divert valve with 3 ports
- Spring return closed A or B port available
- Flow direction DN65-150; AB->A with max Kv and AB->B with reduced Kv
- Cast iron valve body material.
- Media temperature -10 to 220 degree C
- Pressure class PN16
- DIN flanges available
Technical specifications
| Product code | Samson |
| Max. product pressure | 1000 kPa (10 bar) |
| Temperature range | -10°C to + 140°C (EPDM) However max. 95°C when operating the valve |
| Actuator | Max. air pressure: 700 kPa (7 bar) |

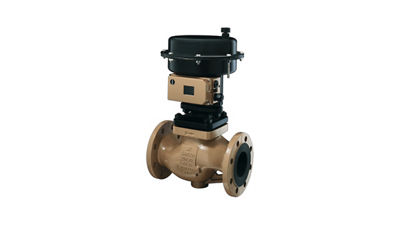

Regulating valves type 3321
Features & Benefits
- Regulating valve 2 ports
- Spring return closed or open available
- Soft seat or hard seat
- Cast iron valve body material.
- Media temperature –10 to 220 degree C
- Pressure class PN16
- DIN or ANSI flanges available
- Positioner 3725 with display
Regulating valves type 3323
Features & Benefits
- Mixing valve with 3 ports
- Spring return closed A or B port available
- Cast iron valve body material.
- Media temperature -10 to 220 degree C
- Pressure class PN16
- DIN flanges available
- Positioner 3725 with display
